Zhenjiang Chunhuan Sealing Materials Co., Ltd(Group)
6 Years
| Ask Lasest Price | |
| Brand Name : | CHUNHUAN |
| Model Number : | CAST |
| Certification : | ISO,SGS |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200 tons per months |
| Delivery Time : | 7~ 20 days |

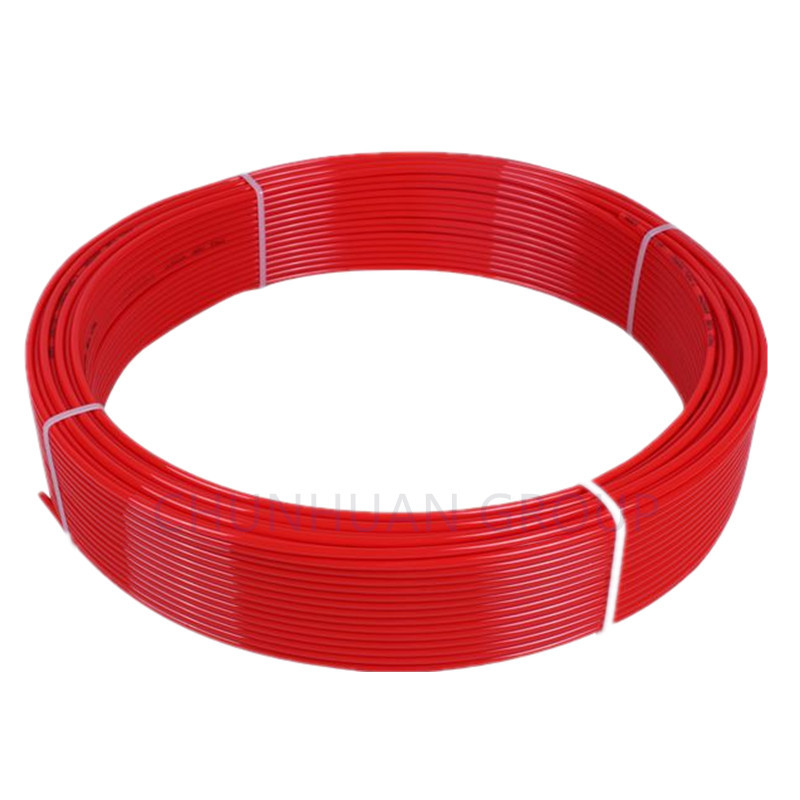

Different Color Nylon Plastic Sheet PA6 PA12 Plastic Tube Length In Rolls
DESCRIPTION
Nylon tube (polyamide), referred to as PA tube, nicknamed Nylon tube.
It is a kind of synthetic fiber, with good physical and chemical and mechanical properties: abrasion resistance, can be used in the condition of sand, iron scraps; smooth surface, reduce resistance, can prevent rust and scale deposition; soft, easy It is curved, easy to install and easy to process.
At the same time, it is steel. When a certain shape is required, it can be made into a variety of shapes like a metal tube, and it does not require complicated equipment and tooling; it can withstand the corrosion of many chemical substances; it has stable dimensions and low permeability; and its resistance is extremely large.
It can be used as an insulator; the service life is very long, even for decades; it has good temperature resistance and can work in an environment of -40-100°C.
[1] MC nylon color (ivory white)
The characteristics of unmodified cast nylon 6 are very similar to PA66. It has good binding performance, strength, rigidity and hardness, resistance to deformation, wear resistance, heat and aging resistance.
[2] Natural color of oily nylon (green)
It is specially developed for the manufacture of parts that cannot be lubricated, with high load and low operating degree. It has a lower friction coefficient and better wear resistance than ordinary nylon.
[3] Aluminium disulfide nylon color (gray black)
The powder containing molybdenum disulfide can improve the load-bearing capacity and wear resistance of the unmodified cast nylon without affecting the durability and fatigue performance of the unmodified cast nylon.
REGULAR SIZE LIST
| Size(mm) | Ouer Ring(mm) | Inner Ring(mm) | Length(M) |
| 4 x 0.75 | 4 | 2.5 | 100 |
| 4 x 1 | 4 | 2 | 100 |
| 6 x 1 | 6 | 4 | 100 |
| 8 x 1 | 8 | 6 | 100 |
| 8 x 1.5 | 8 | 5 | 100 |
| 10 x 1 | 10 | 8 | 100 |
| 10 x 1.5 | 10 | 7 | 100 |
| 12 x 1 | 12 | 10 | 100 |
| 12 x 1.5 | 12 | 9 | 100 |
| 14 x 1.5 | 14 | 11 | 100 |
| 16 x 1.5 | 16 | 13 | 100 |
APPLICATION FIELD
It is widely used in machinery, automobile, electrical, chemical, aviation, marine and other fields. It replaces copper and other metal materials, such as bearings, bushings, and bushings.
Gears, racks, pulleys, sliders, nuts, nuts, piston rings, sprockets, pulleys, pump wheels, valve seats, valve gaskets, etc.
MAIN FEATURES
(1) High mechanical strength, good toughness, high tensile and compressive strength
Fatigue resistance is outstanding, and the original mechanical strength can be maintained after repeated repeated bending.
3) The surface is smooth, the coefficient of friction is small, and it is wear-resistant
4) Corrosion resistance: Alkali resistance and most salt solutions, also
5) Non-toxic: inert to biological erosion, with good antibacterial and anti-toxic ability.
(6) Heat resistance: wide use temperature range, can be used for a long time at -40-100 ℃, short-term heat resistance temperature reaches 120-150 ℃
(7) Has excellent electrical properties and good electrical insulation
(8) Not resistant to strong acids and hydrogenating agents.
(9) Poor light resistance and staining.
|
|
