Soft Expanded PTFE Sheet ePTFE For Gasket Sealing

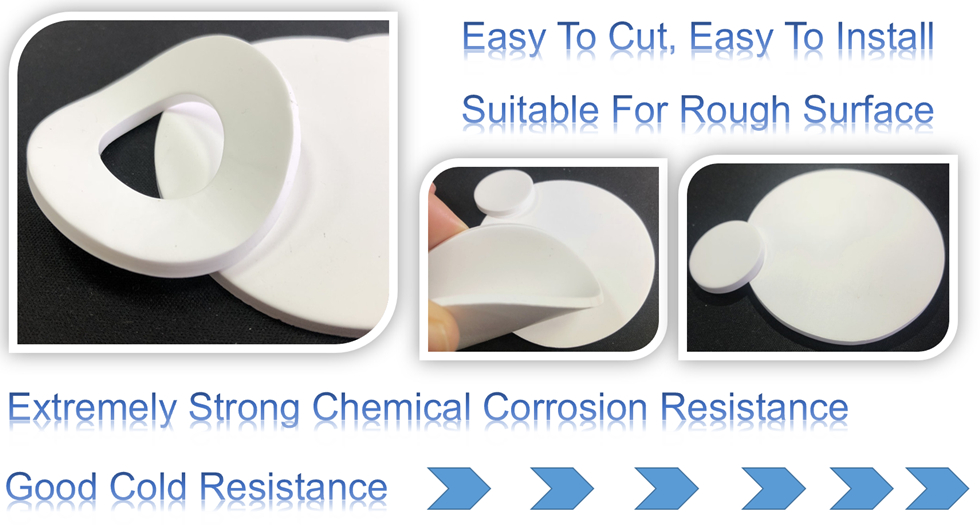

Expanded PTFE Gasket is made of 100% PTFE of puffed PTFE material cut or punched. Expanded PTFE material (eptfe) expands PTFE into a unique material with strong, tough and porous properties and is highly fibrotic.
It not only maintains the unique properties of PTFE itself - excellent chemical stability (not affected by general chemicals); extremely low coefficient of friction; wider operating temperature; non-aging and permanent durability.
Application
Chemical, petrochemical, oil refining, chlor-alkali, acid making,
phosphate fertilizer, pharmaceutical, pesticide, chemical fiber, dyeing, coking, gas, organic synthesis, non-ferrous smelting,
iron and steel, atomic energy and high-purity products production (such as ion membrane electrolysis),
viscous material transportation and operation, highly strict hygiene requirements of food, beverage and other processing and production
Properties
| Inspection Item | Unit | Standard |
| Work Temperature | ℃ | -240 ~270,Melt 315 |
| Tensile strength | Mpa | ≥10 F-152 |
| Compressive Strength | Mpa | ≤ 140 |
| Compression(35mpa load) | % | 65 F-36 |
| Recovery(35mpa load) | % | 11.61 F-36 |
| Creep(100 degC ×22hr) | % | 68.32 F-38 |
| Nitrogen-seal(mi/hr-17.25mpa) | Mpa | 0.16Internal Pressure 4 |
| Nitrogen-seal(ml/hr-35mpa) | Mpa | 0.0037 Internal Pressure 4 |
| Density | g/cm3 | 0.9 to 1.0 |
