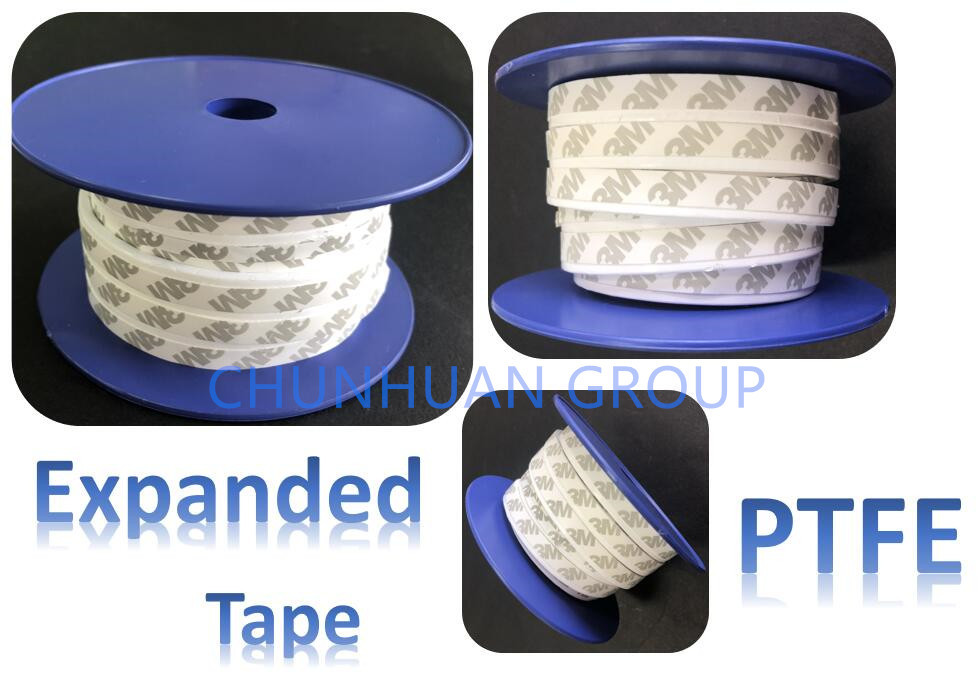

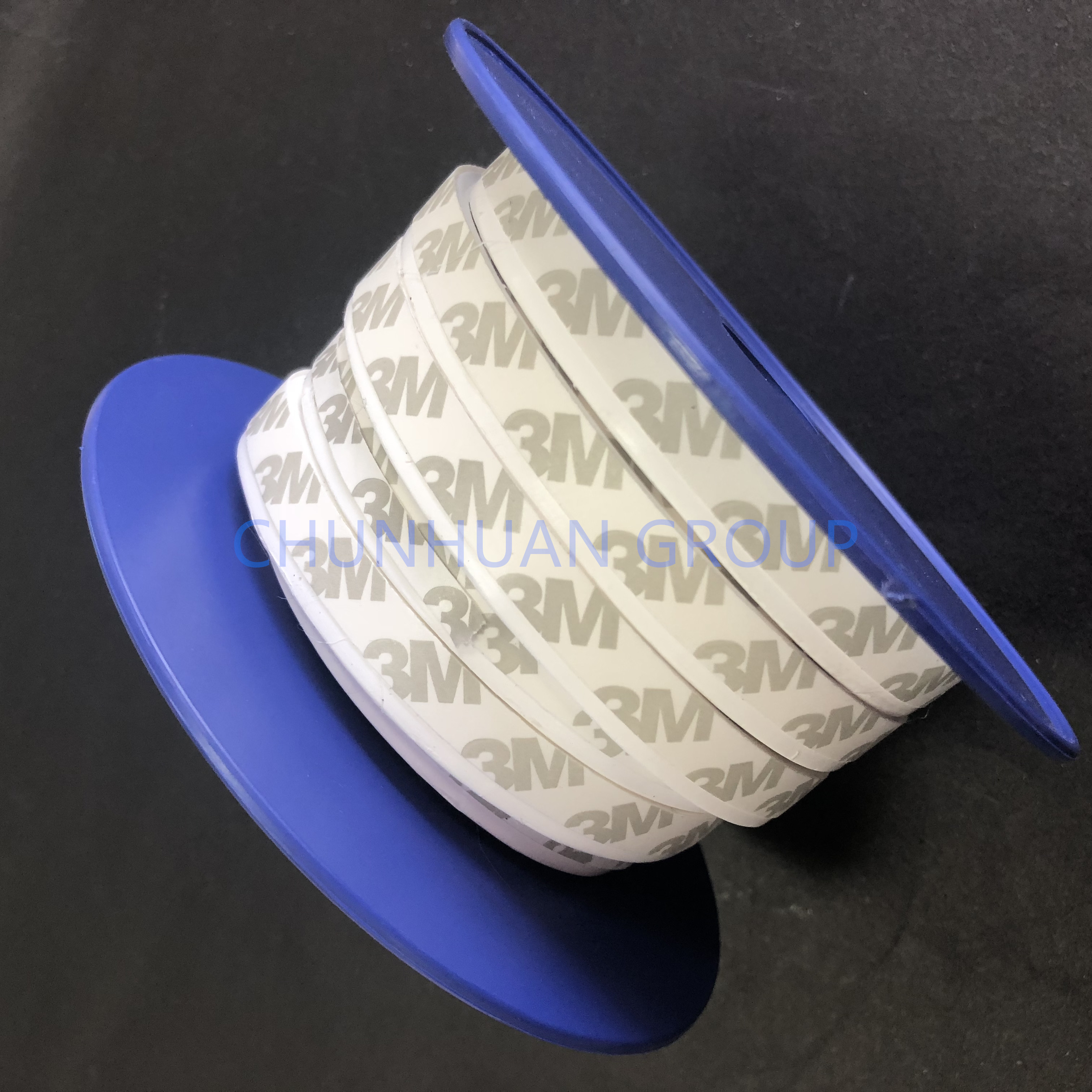

White Color Pure PTFE Expanded Tape Regular Size 1.5～7 * 3～70 * Kg Or Meten As Request

PTFE Expanded tape is an inorganic sealant for static applications made of 100%PTFE().

A unique process converts PTFE to a micro-porous fibrous structure, resulting a sealant with an unsurpassed combination of mechanical and chemical properties. It is supplied with a self-adhesive strip for easy fitting.

PTFE Expanded tape is especially suited for sealing flange connections, pipe system, hydraulic and pneumatic systems, etc. In addition, it’s also ideal for seals in glass, enamel and plastic flanges, vessels and special shaped sealing surface.

FEATURE

1 . Durable in use.

2 . excellent corrosion resistance

3 . aging resistance

4 . excellent corrosion resistance

5 . self-lubricating

6 . good flexibility

7 . high and low temperature resistance

8 . Sealing strip coated with back glue, easy to use.

9 . used in wide temperature range of long-term safety;

10 . fully fill irregular sealing surface, reduce the sealing surface of machining accuracy,make some

broken parts and equipment due to sealing surface corrosion, erosion and wear back to life;

Effective remedy defects, less maintenance time.Make full use of every centimeter, no waste, more economic value,is ideally material to replace varieties of spacer by asbestos and rubber spacers.

ADVANTAGE

PTFE Expanded tape saves money and time. Since there is no scrap or waste, it costs less than other gasket materials. By using only a few sizes, large inventories of sheet gasket and costly precut gaskets can be eliminated. Installation time is kept to a minimum since there are no templates, precutting or special fitting requirements

Media Acids, alkalis, solvents, gases, etc.

Temperature-240 up to 260℃

Pressure 100 bar

PH-Value 0-14

Density Grade A/B: 0.70/0.80g/cm³

1.0~1.5g/cm³on request

Technical Properties

APPLICATION

Applicable to the reactor, steam generators and various shaped mouth lost cans, buckets seals.

Applicable to chemical, pharmaceutical, electric power, metallurgy, food and other industries,varied forms of flange, is ideally seal materials for glass, pottery and porcelain, rough and special shaped surface.

Can also be used on the surface of a slightly oily or water damage.

Zhenjiang Chunhuan Sealing Materials Co., Ltd (Group) is located in Yangzhong City, Jiangsu Province, China, Founded in 1985, after more than 30 years of continuous development, has become the production of fluorine plastic products scale backbone enterprises. Companies registered capital of 80.88 million yuan, with more than 8,000 yuan in fixed assets, 20,000 square meters of business premises, more than 200 workers.

Main products: PTFE molded tube, sheet, gasket, PTFE push, extrusion rod/ tube,PTFE skived sheet/film,PTFE filled products,Soft PTFE products,PTFE processing parts,Steel lining pipe fittings; Engineering plastics and Various metal seals, Metal sprial wound gasket; Fluorine rubber products, Gaskets, O-ring, oil seal etc.
