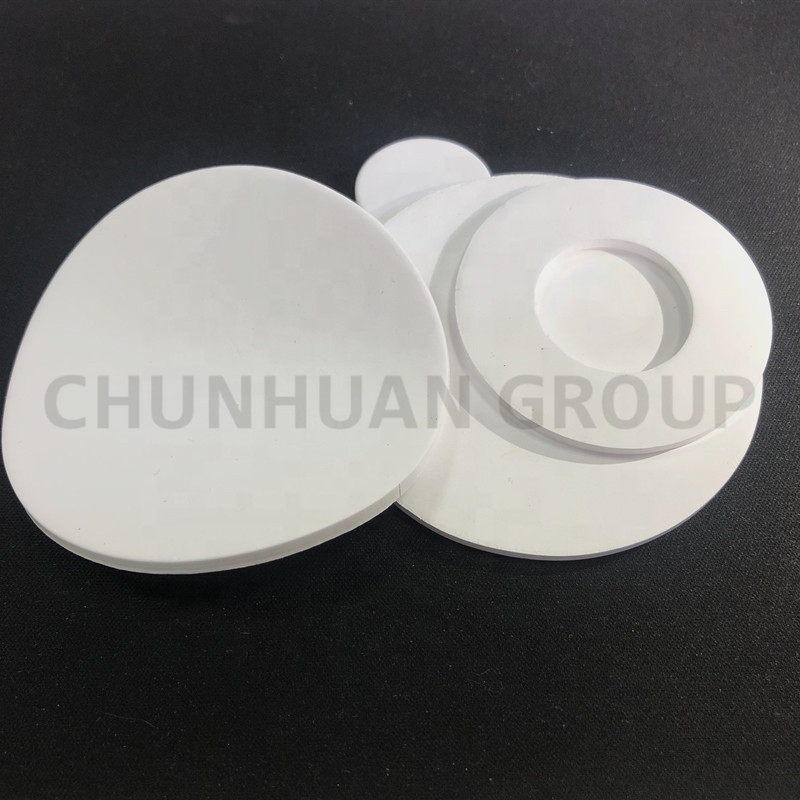

100% Virgin PTFE Expanded Sheet Thickness 0.5-8 mm Width Length 1500*1500 For Gasket Sealing
Product Description
Expanded PTFE Sheet is a high performance sheet gasket material made of multi-directionally expanded virgin PTFE. It is a soft, form-in-place gasket material that conforms to almost any sealing surface. It is capable of withstanding a wide range of pressure, temperature and chemical environments. Due to its highly fibrillated microstructure, it has excellent creep resistance compared with other PTFE products.
Application
l Used in petrochemical, food and pharmaceutical industries
l Seal nearly all aggressive chemicals 0-14 PH
l Various kinds of flanges and vessel mouths
l Paper industry and medical equipments
l Pneumatic and water systemss
l Steam
l Pump., etc.
Technical Data
| Expanded PTFE Sheet | |
| Sheet Size | 60” x 60” nominal (59” x 59” min) |
| Sheet Thicknesses | 1/32”, 1/16”, 1/8”, 1/4" |
| Composition | 100% Expanded PTFE (no fillers or additives) |
| Color | White |
| Density | 0.8 +/- 0.08 g/cc |
| Pressure Range | Full Vacuum to 3,000 psi |
| Temperature Range | -450ºF to 525ºF (-265ºC to 260ºC) continuous |
| -450ºF to 600ºF (-265ºC to 315ºC) intermittent | |
| Pressure x Temperature (psi x deg F) | 350,000 max |
| pH Range | 0-14 (resistant to all common chemicals, except molten alkali metals and elemental fluorine) |
| FDA | Compliant with 21 CFR 177.1550 |
| Stability | No Age Deterioration Unlimited Shelf Life |
| ASTM Testing | |
| Compressibility (ASTM F-36) | 58% |
| Recovery (ASTM F-36) | 0% |
| Sealability (ASTM F-37; Method B; N2 Gas; 30 psi; 1/32” thick test specimen) | 0.02 ml/min |
| Creep Relaxation (ASTM F-38; Method B; 1/32” thick test specimen) | 21% |
Specification
| Lengt(mm) | Width(mm) | Thickness(mm) |
| 1500 | 1500 | 0.5 |
| 1500 | 1500 | 1 |
| 1500 | 1500 | 1.5 |
| 1500 | 1500 | 2 |
| 1500 | 1500 | 2.5 |
| 1500 | 1500 | 3 |
| 1500 | 1500 | 4 |
| 1500 | 1500 | 5 |
| 1500 | 1500 | 6 |
| 1500 | 1500 | 6.5 |
| 1500 | 1500 | 7 |
| 1500 | 1500 | 8 |
