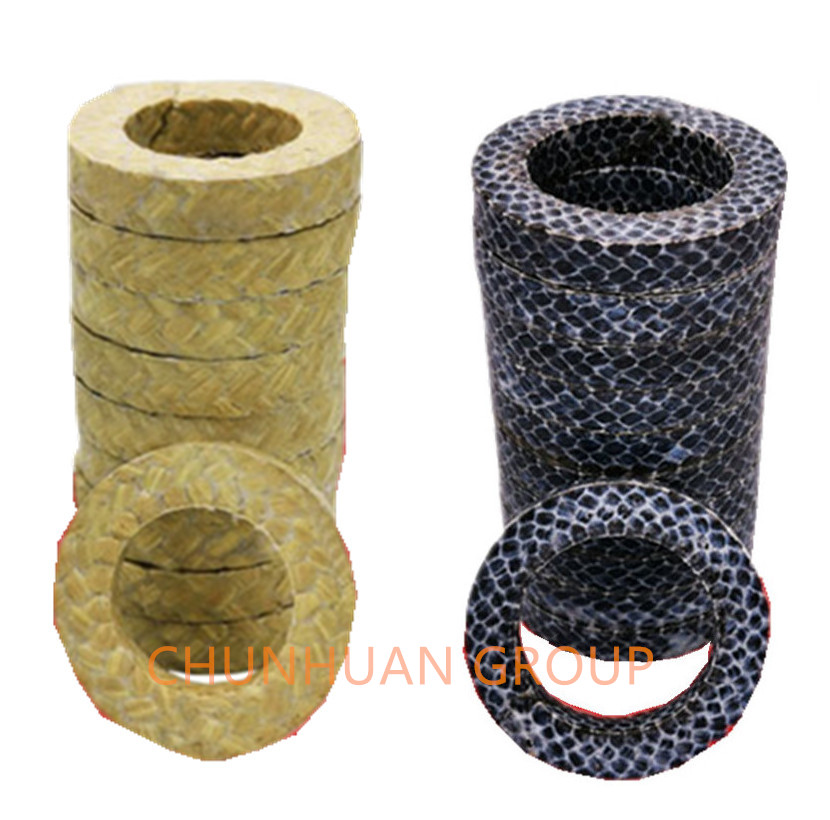

Braided Packing Aramid Mixed PTFE Packing Ring Virgin White PTFE Braided Ring Sealing Gakst Round Shape
DESCRIPTION
Aramid corner white / White PTFE packing is woven with aramid fiber and PTFE as raw materials by a special process. High-strength aramid material is wrapped around the corners of the packing to make the product more resistant to wear. Combining the excellent properties of DuPont Kevlar fiber and PTFE, the product is more resistant to wear and is suitable for dynamic sealing at higher line speeds and higher media pressures.
Applications: reciprocating pumps, mixers, agitators, reactors, valves.
Industry: Chemistry, agricultural chemistry, petrochemical, pharmaceutical,
sugar, paper, power industry.
Medium: water, sewage, oil, grease, weak acid, and weak base solution,
acid-base solution, grinding media.
Available specifications: 8*8mm–50*50mm, special specifications or various types of
non-standard products can be formulated according to customer
requirements.
technical parameter:
◆ Pressure: 4-20MPa
◆ Temperature: -100～280℃
◆ Linear speed: 0-18m/s
◆ PH value: 2-12
PACKING SERIES
Carbon packing, PTFE packing, Graphite packing, High water-based packing, Aramid packing, Aramid PTFE mixed packing, Aramid carbon mixed packing,
PTFE Ethylene split wire packing, PTFE packing, Expanded PTFE packing, Asbestos packing,
Carbon fiber packing, Butter packing, Oil-immersed asbestos packing, Asbestos rubber packing, Glass fiber packing,
Ceramics Fiber packing, Nylon packing, Composite fiber packing, Ceramic packing and other products.
.
APPLICATION
Reciprocating pumps, mixers, agitators, reactors, valves.
Application industry:
Chemical, agrochemical, petrochemical, pharmaceutical, sugar,
paper, and power industries.
Application medium:
Water, sewage, oil, grease, weak acid, and weak base solution,
acid-base solution, grinding media.
ADVANTAGE
1 High temperature resistant working temperature up to 250℃.
2 Low temperature resistant person has good mechanical toughness, even if the temperature drops to -196°C, it can maintain 5% elongation.
3 Corrosion resistance For most chemicals and solvents, it is inert, resistant to strong acids and alkalis, water and various organic solvents.
4 weather resistance has the best aging life in plastics.
5 High lubrication is the lowest friction coefficient of solid materials.
6 Non-adhesion is the smallest surface tension in solid materials, and does not adhere to any substance.
MAIN PROPERTIES OF PACKING
| Press | 4-25MPa |
| Temperature | -100-280°C |
| Linear Speed | 0-20m/s |
| PH Value | 2-14 |
| Density g/cm3 | 1.8 |
| Temperature °C | -200℃-+350℃ |
| PH range | 1-14 |
