Zhenjiang Chunhuan Sealing Materials Co., Ltd(Group)
6 Years
| Ask Lasest Price | |
| Brand Name : | Chunhuan |
| Model Number : | Rubber Sheet |
| Certification : | ISO 9001, MSDS,Reach,FDA |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 150 T/M |
| Delivery Time : | 5-8 days |

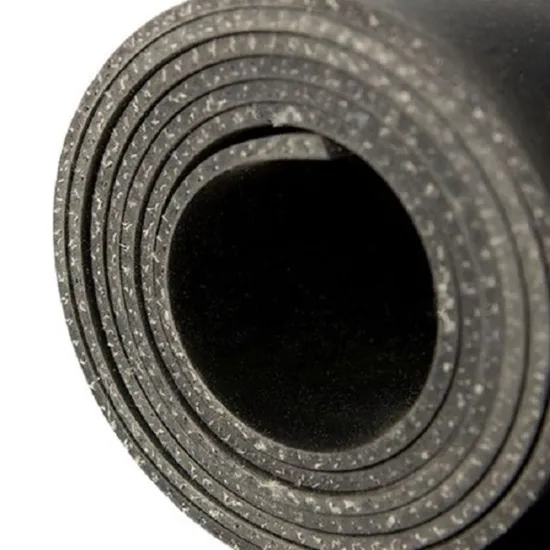

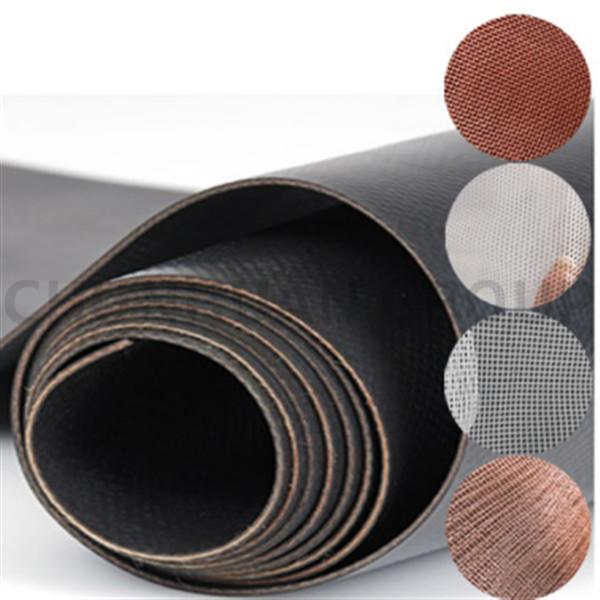

Anti-Slip And Water-Proof Cloth Insertion Silicone Rubber Sheet Thickness 2-80 Mm Flooring With Surface Protection
Production description
Insertion rubber has good tensile and less distortion. It is widely
used in punching seals and gaskets, for light conveying
strap and work in the place where has high strength requirements.
Features
1. Excellent proof sealing
Application
1. Be used for Highly resistant to oil and solvent products;
Data Sheet
| Product No | Cloth insertion rubber sheet |
| Tensile strength: | 2Mpa ~ 20Mpa |
| Elongation | 150% ~350% |
| Hardness | Shore a 40~75 |
| Gravity | 1.8~1.2 g/cm3 |
| Temperature range | -15cºc~ 100ºc |
Technical Specifications
| Material | NR(Natural) | SBR | Neoprene (CR) | NBR (Nitrile) | EPDM | Silicone | Viton | BR |
| Hardness (Shore A) | 40-85 | 45-85 | 50-80 | 40-85 | 40-85 | 40-75 | 70-80 | 50-80 |
| Tensile Strength (Mpa) | 3-20 | 2-10 | 3-10 | 3-20 | 3-15 | 6-10 | 6-8 | 3-8 |
| Density(g/cm³) | 1.1-1.6 | 1.4-1.7 | 1.3-1.7 | 1.1-1.6 | 1.4-1.6 | 1.2-1.4 | 1.9 | 1.35 |
| Elongation ( % ) | 200-650 | 200-450 | 200-500 | 200-500 | 200-500 | 200-700 | 100 | 200-500 |
| Thickness | 1-50mm | |||||||
| Length | 5-50m | |||||||
| Width | 1-2m | |||||||
| Color | Black,Red,White,Blue,Green,Grey etc. | |||||||
| Surface Finish | Both sides smooth or fabric pressed; one side smooth, one side fabric finished. | |||||||
| Fabric Insertion | 1 ply or multi plies as per client's request | |||||||
Our Service
1) Your Inquiry Will Be Replied Within 2 Hours During Working Time,Within 24hours When Rest Time.
2) Our Working Time Is 7.30 AM --17:30 PM,Monday To Saturday.
3) General Samples Time Can Be Arranged Within 2--5days.
4) Orders Will Be Produced Exactly As Request And Approved Samples.
5) When Mass Production,We Send Photos To Show The Production Line.And Confirm The Estimate Time Again.
6) At The End Of Mass Production,Photos And Samples Will Send To You For Approval.You Can Arrange The Inspection.
7) Before Shipment,Our QC Will Have Inspection To Make Sure The Quality.
8) We Always Try Best To Ensure Every Order To Delivery In Time.
Payment Terms
1) T/T,Cash,L/C.
2) 30% Deposit,70% Balance Before Shipment.
3) Lead Time: 15 Days After Received Deposited For 2tons.
4) Delivery Way: By Sea,By Air, By EMS,DHL,UPS,TNT,FedEx.
Packing & Delivery
For Sample: By EMS,DHL,UPS,TNT,FedEx
Around 5--7 Working Days To Arrive
For Bulk Order
1. Qty Of 2tons,Within 15 Days.
2. Via Sea
3. Delivery Time:we Will Finish Production In 15days For 2tons.
4. For 20 GP,May Nee Around 30days.
