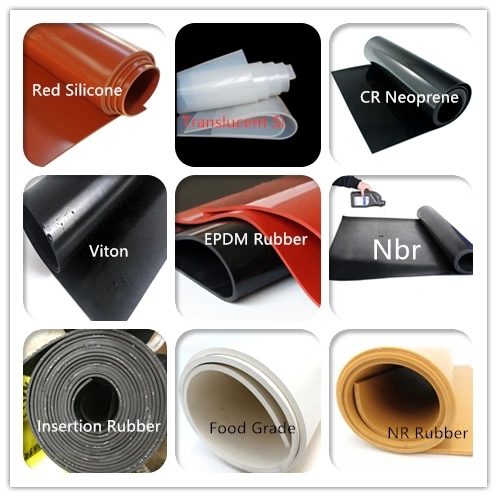

NBR EPDM Neoprene SBR Silicone Natural Rubber Sheet With Red Green Black Beige Color For Conveyor Industrial
Styrene-Butadiene Rubber Sheets(SBR)
A polymer used in the manufacture of expanded rubber. It is very
economical and possesses no unique chemical resistance properties.
SBR rubber can be compounded to provide very fine abrasion, wear,
and tensile qualities. SBR can be readily substituted for natural
rubber in many applications with significant cost savings.
Resilience is about the same as natural rubber. SBR rubber is a
staple in the HVAC and construction industry as it is versatile,
flexible and tough enough to stand up. SBR rubber is a good choice
when deciding to choose a material that has great mechanical
properties and flexibility.
Natural Rubber Sheets(NR)
These rubber sheets offer outstanding physical properties along
with temperature resistance used for service temperature up to
80°C. This product is great solution for variant industries but it
has poor resistance to petroleum-based ozone, fluids and sunlight.
Neoprene Rubber Sheets(CR)
These sheets are best for acids, alkalis and open flames. The
neoprene sheets supplied by us are outstanding for high temperature
range of 40° C to 120° C. These sheets are meagerly used in
different organizations like refineries, processing units and
chemical industries.
Nitrile Rubber Sheets(NBR)
These sheets have excellent resistance for petroleum products and
many more industries like oil resistant seals and gaskets. The
nitrile rubber sheets stocked by us can easily work on highest
temperature of 110 F. These sheets contain good physical properties
like abrasion resistance and good ageing resistance.
Silicone Rubber Sheets(Q)
These sheets contain good resistance for chemicals, acids and
alkalis. These retain electrometric properties at any temperature.
It stands at 200 C easily. These sheets have high resistance for
ozone, ultraviolet radiation and oxygen but these are not good for
oil industries.
E.P.D.M Rubber Sheets(EPDM)
The E.P.D.M rubber sheets made by us have outstanding compatibility
with huge range of chemicals and intermediates. These sheets are
extensively used in chemical, fertilizer plants and pharmaceutical
industries.
Viton Rubber Sheets(FPM/FKM)
The viton sheets produced by us are used for specific industries of heat and oil resistance. These exhibit excellent resistance for ageing and flame.
Properties
| SBR | Working Temperature | -30°C-80°C | |
| Tensile strength | 2-8mpa | ||
| Hardness | 50-80 Duro | ||
| NBR | General Grade | High Grade | |
| Material Selection | SBR/NBR | Nitrile | |
| Working Temperature | -30°C-80°C | -30°C-110°C | |
| Tensile strength | 3-8mpa | ||
| Hardness | 50-80 Duro | ||
| CR | General Grade | High Grade | |
| Material Selection | SBR/CR | Neoprene | |
| Working Temperature | -30°C-80°C | -30°C-110°C | |
| Tensile strength | 3-8mpa | ||
| Hardness | 50-80 Duro | ||
| EPDM | General Grade | High Grade | |
| Material Selection | SBR/EPDM | EPDM | |
| Working Temperature | -30°C-80°C | -30°C-110°C | |
| Tensile strength | 3-8mpa | ||
| Hardness | 50-80 Duro | ||
| Silicone | Working Temperature | -50°C-220°C | |
| Tensile strength | 6-8mpa | ||
| Hardness | 60-70 Duro | ||
| Working Temperature | -50°C-220°C | ||
| Tensile strength | 6-8mpa | ||
| Hardness | 70+/-5 Duro | ||
| Insulation | Polymer Content | 100% SBR | |
| Working Temperature | -30°C-100°C | ||
| Proof Voltage | 15KV-50KV | ||
| Color | Black, Grey | ||
| Surface | Smooth/ fine rib | ||
| Antistatic/ESD | Material | NBR/SBR | |
| Working Temperature | -30°C-100°C | ||
| Top Layer | 107-109Ω | ||
| Bottom Layer | 103-105Ω | ||
| Color | Green+black | ||
|
|
