Zhenjiang Chunhuan Sealing Materials Co., Ltd(Group)
6 Years
| Ask Lasest Price | |
| Brand Name : | CHUNHUAN |
| Model Number : | MOLDED |
| Certification : | SGS,ISO,FDA,RoHs |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T,Cash |
| Supply Ability : | 10tons per month |
| Delivery Time : | 7 ~20days |

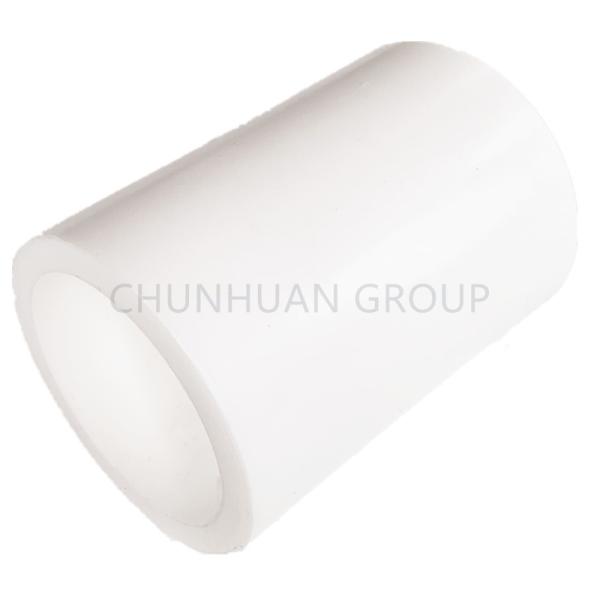

White Color 100% Virgin PTFE Tube Molded Length From 100mm to 300mm
FEATURES
PTFE extruded pipe and molded pipe using polytetrafluoroethylene suspension polymerization process. In the known plastic polytetrafluoroethylene has good chemical resistance and dielectric properties.
1 . Chemical Insert
2 . High Temperature Resistance
3 . Continuous Operating
4 . Temperature:-80℃-260℃
5 . Corrosion Resistance(Acid/Alkali Resistance, Chemical Reagents Oil-Proof), Most Of The Chemicals And Solvents, Shown Inertia, Capability Strong Acid Strong Base Water And Various Organic Solvents.
6 . High Pressure Resistance
7 . High And Low Temperature And The Use Temperature Of 250℃
8 . Good Mechanical Toughness, Even If The Temperature Dropped To -196℃,Can Also Keep 5% Of Elongation Rate
9 . Climate Resistance, Plastics Has The Aging
10 . High Lubrication Is The Solid Material In The Lowest Coefficient Of Friction
11 . No Adhesive Is The Solid Material In The Smallest Surface Tension, Adhesion Is Not Any Substance.
MAIN PROPERTIES
| Properties | Unit | Result |
| Apparent density | g/m3 | 2.10~2.30 |
| Tensile density(min) | Mpa | 18 |
| Crack elongation(min) | % | 230 |
SPECIFICATIONS AND SIZE
| TYPES | Specification | ||
| outside diameter(mm) | wall thickness(mm) | length(mm) | |
| pressed pipe | 1~25 | 0.1~2.5 | produced under requirements |
| extruded pipe | 25~200 | 1.5~8 | produced under requirements |
| die pressed pipe | 25~200 | 5~500 | 100~300 |
PTFE Filled Grades Offer A Range Of Materials That Expand On The Properties Of PTFE
PTFE Virgin, Unfilled
15% Glass Filled
25% Glass Filled
35% Carbon Filled
60% Bronze Filled
55% Bronze + 5% Molybdenum Disulphide Filled
APPLICATIONS
* Transmission of corrosive liquids or gases such as hydraulic fluid and fuel in the aerospace industry;
* High pressure air, fuel and hydraulic transmission in the automotive industry;
* Delivery of chlorine, steam, acid-base organic compounds, etc. in the chemical industry;
* Purity fluid delivery. As PTFE has the best plastic in the high temperature, low corrosion, anti-aging, high insulation and non-stick advantages.
RFQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturer.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock or it is 15-20 days if the goods are not in stock,it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes,we could offer the sample for free charge .
Q:What is your terms of payment ?
A:Payment < = 1000USD,100% in advance,Payment >=1000USD,30% T/T in advance,balance before shipping,against the B/L.
|
|
