| Brand Name : | CHUNHUAN |
| Model Number : | PTFE Filled 40% Bronze Gasket |
| Certification : | SGS,MSDS,FDA |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 500000piece/Month |

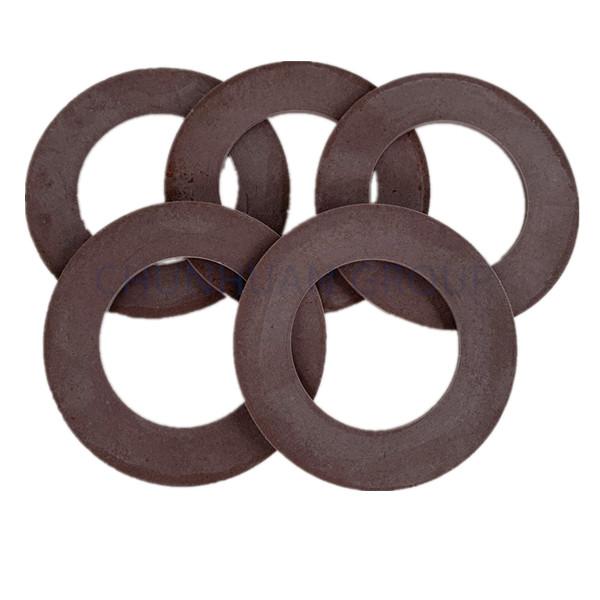

Brown Color PTFE Filled 40% Bronze Gasket Size According To Customer Drawings For Processing
Features
PTFE envelope gasket is a kind of static seals.It is composed of
elastic materials such as compressed asbestos
sheet,rubber,ceramics,etc. And PTFE envelope cover.
PTFE has superior properties against chemical(not affected by all
chemicals except molten alkali metal and fluorine at elevated
temperature) and temperature(from - 180ºC ~ +250ºC)The coefficient
of static and dynamic friction of PTFE are every low.PTFE is the
best of the "non-stick"material. It has excellent anti weathering
and aging characteristics.
Types and Specifications:
1 . PTFE Envelope Gasket:
| Outside Diameter | Inside Diameter | Thickness |
| 1-7/8''(48mm) | 1/2''(12.7mm) | 0.04''(1.02mm) 1/15''(1.6mm) 3/16''(4.8mm) 1/4''(6.4mm) |
| 2-1/4''(57mm) | 3/4''(19mm) | |
| 2-5/8''(67mm) | 1''(25.4mm) | |
| 3-3/8''(86mm) | 1-1/2''(38mm) | |
| 4-1/8''(105mm) | 2''(51mm) | |
| 5-3/8''(136.5mm) | 3''(76mm) | |
| 6-7/8''(175mm) | 4''(102mm) | |
| 8-3/4''(222mm) | 6''(152mm) | |
| 11''(279mm) | 8''(203mm) |
Note:(Thickness)Gasket slot width
2 . PTFE Flange Gasket:
| Code | Outside Diameter(mm) | Inside Diameter(mm) |
| JIS 10K RF GASKET LIST | ||
| 10A ~ 600A | 53 ~ 700 | 18 ~ 615 |
| JIS 10K FF GASKET LIST | ||
| 10A ~ 600A | 90 ~ 795 | 18 ~ 614 |
Different standards of different specifications gasket, according to customer drawings for processing
Applications
PTFE envelope gasket is used to seal pipe flange anti joint of
industrial machinery apparatus which is lined with rubber,plastic
ceramics graphite etc.
OUR SERVICE
1 . Your Inquiry Will Be Replied Within 2 Hours During Working Time,Within 24hours When Rest Time.
2 . Our Working Time Is 7.30 AM --17:30 PM,Monday To Saturday.
3 . General Samples Time Can Be Arranged Within 2--5days.
4 . Orders Will Be Produced Exactly As Request And Approved
Samples.
5 . When Mass Production,We Send Photos To Show The Production
Line.And Confirm The Estimate Time Again.
6 . At The End Of Mass Production,Photos And Samples Will Send To
You For Approval.You Can Arrange The Inspection.
7 . Before Shipment,Our QC Will Have Inspection To Make Sure The
Quality.
8 . We Always Try Best To Ensure Every Order To Delivery In Time.
Payment Terms
1 . T/T,Cash,L/C.
2 . 30% Deposit,70% Balance Before Shipment.
3 . Lead Time: 15 Days After Received Deposited For 2tons.
4 . Delivery Way: By Sea,By Air, By EMS,DHL,UPS,TNT,FedEx.
About our factory
1 . Our factory is located in Yongsheng Industrial Development
Zone,Yangzhong City,Jiangsu, which has convenient transportation
and elegant surrounding. You are warmly welcome to visit our
factory.
2 . We are a Professional PTFE manufacturer.
3 . We specialize in PTFE which include sheet, bar, tube, tape,
film, gasket, braided packing and all special type components. We
can meet your special demand.
4 . Pls feel free to contact me.I will try my best to answer your
questions about our products.
|
|
